L-NP Series Benchtop Pick and Place System

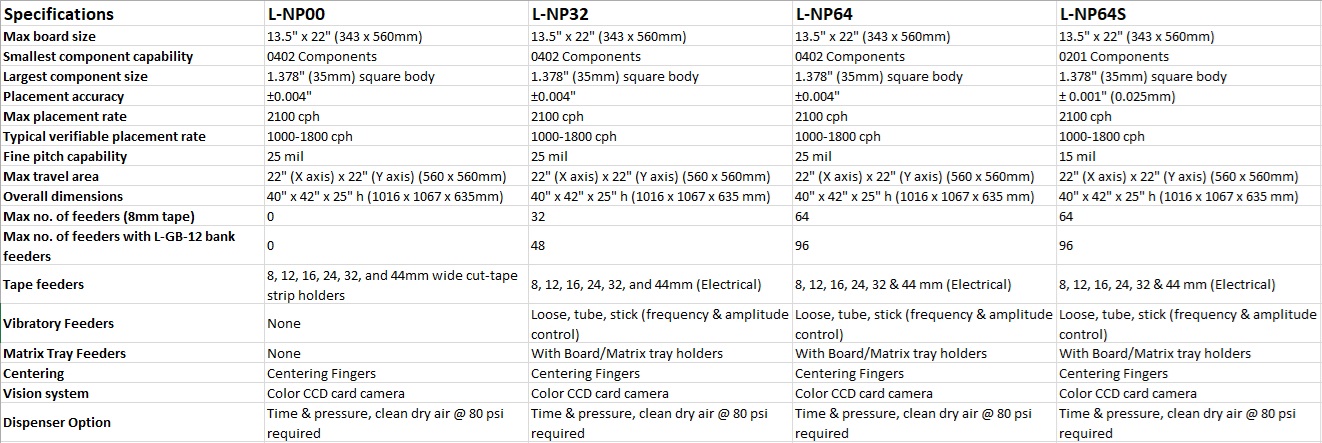

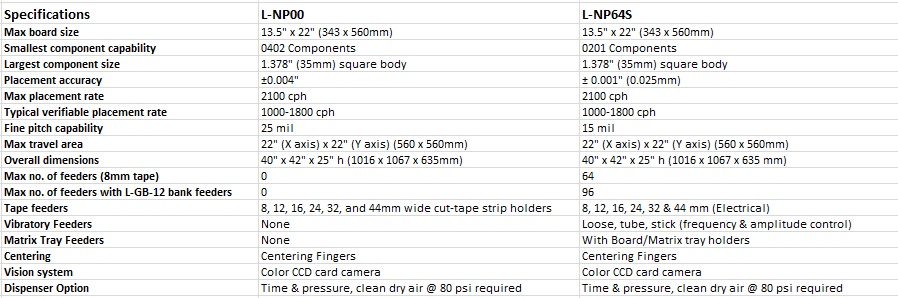

The NovaPlace™ L-NP Series is an entry level, low-cost turnkey automatic pick and place system that can be put in production right out of the box. Once a specific PCB is programmed, the machine automatically picks up each component from its designated feeder or tray, centers the part and moves to the placement location, and accurately places the part. The feeders automatically position the next component for pick-up. It is easy to set up, easy to program, and easy to use with Windows™-based software. See Specifications tab below for details on each model.
L-NP00 accommodates only cut tape feeders; placement accuracy of +/-0.004”
Request a Quote
L-NP32 accommodates 32 tape feeders; placement accuracy of +/-0.004”
Request a Quote
L-NP64 accommodates 64 tape feeders; placement accuracy of +/-0.004”
Request a Quote
L-NP64S accommodates 64 feeders when using bank feeders; placement accuracy of +/-0.001”
Request a Quote
Prototyping - Pilot Manufacturing - Low Volume Production
Read the article "Selecting a Pick &Place Machine."
- Provides affordable automatic pick and place operation in a tabletop system
- Easy to set up, easy to program and easy to use with Windows-based software
- CAD editing Software
- System includes 4 position nozzle changer for most SMT component sizes
- Placement accuracy, up to 0.004" except Model L-NP64S = 0.001"
- Placement rates up to 2100 CPH
- Cut tape strip holders available in various widths & configurations
- Optional convenient SuperStrip™ feeders for short tape strips
- Individual 8, 12, 16, 24, 32 & 44 mm & 12 lane 8mm tape bank feeders available. (Not available on the L-NP00 Model)
- Inserts available for stick/tube/loose components in a vibratory feeder for SMT components including discretes, 0402s, 0603s, SOICs, PLCCs, and 20 mil pitch QPPs
